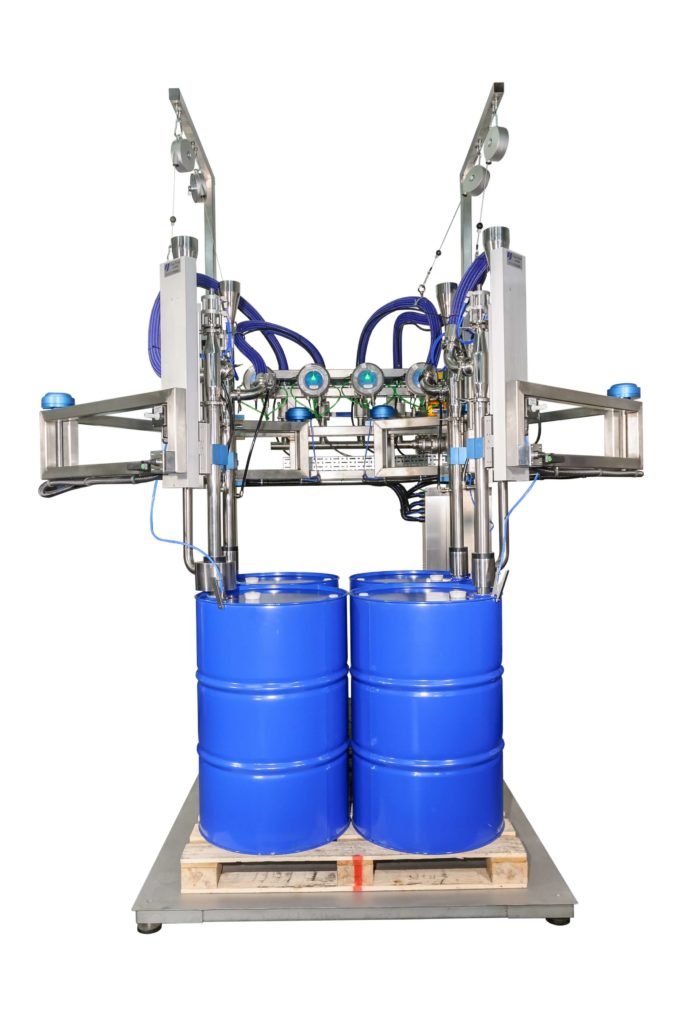

The FT-400 series filling machine has been specially designed for filling 4 x 200ltr drums pre-wrapped on a pallet or a single 1000ltr IBC.
The FT-400 operates by filling drums individually, once filled to the required weight the machine auto accepts the weight and moves on to the next container, once the last one has been completed the operator will accept the final drum weight and pallet weight. The filling machine does not require 4 drums to operate there are selector switches to turn filling lines on or off.
The filling nozzles can be manufactured from either 316 stainless steel, Hastelloy or PVDF with PTFE and Viton seals
Key Features
4 Easy manoeuvrable filling arms to align nozzle with container bung hole
Easy strip down nozzle for cleaning
Suitable for none foaming (Top Fill) & foaming (Bottom Fill)
Weights and Measures (DTI) approved
ATEX compliant
Choice of weigh indicators / platforms or alternatively use your existing equipment
Internal opening nozzle is optional for open top containers (optional)
Only one product connection point and individual isolators for each filling line
Weigh range of 20ltr – 1000ltr+
– 4 x 205ltr drums
– 1 x 1000ltr IBC container
Please contact us if other drum sizes are required.
