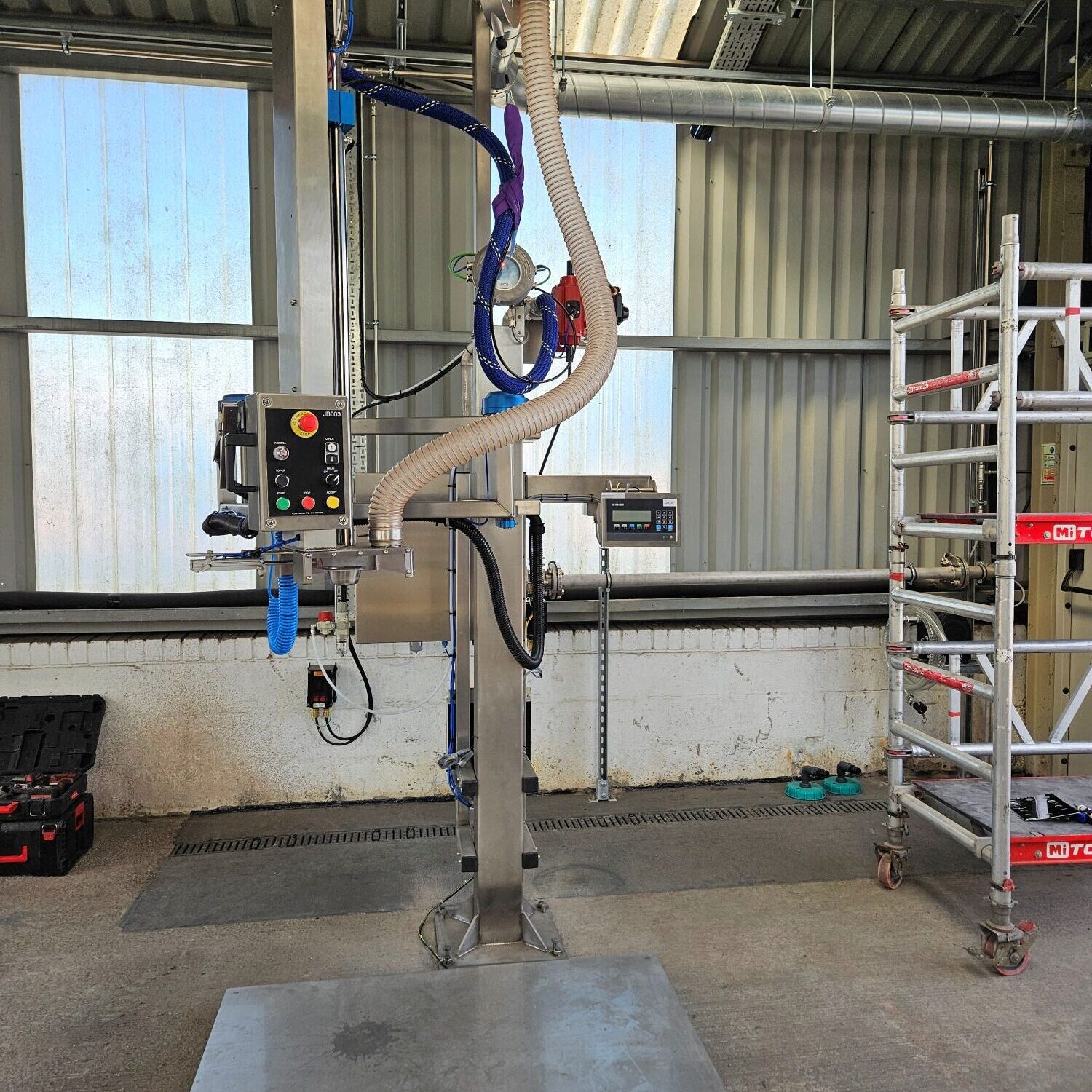

FT-100 Series Filling Machine
Home | Projects | FT-100 Series

FT-100 Series

Project date

September 2023

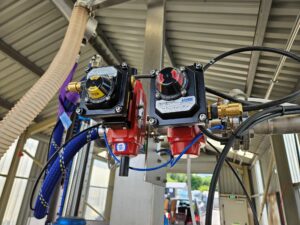

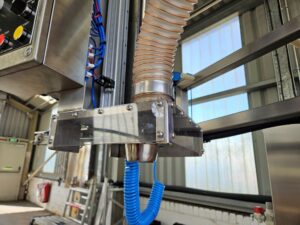

A new customer based in Derby have recently had there filling machine installed and commissioned, a safe area FT-100 filling systems bottom fill type for foaming products, manufactured from stainless steel 304 complete with 316 filling nozzle and ball valves. Incorporated into the filling machine is the 359 touch screen weigh terminal with a 1500kg weigh scale capacity complete with a stainless-steel ramp for pallet truck loading and unloading, Lobe pump with adjustable speed control selector switch for the operator.

Specification

1 1/2″ filling line

Adjustable height for filling 20ltr through to a standard IBC (1000kg).

Touch screen weigh terminal

Stainless steel weigh scale with a max. load of 1500kg complete with ramp.

Safe area application (PLC controlled)

Lobe Pump.
